IRD S 1730

IR-module (ventilated)
Power: 1 x 11 kW
continuous twin emitter with gold reflector
horizontal position of installation +/- 4%

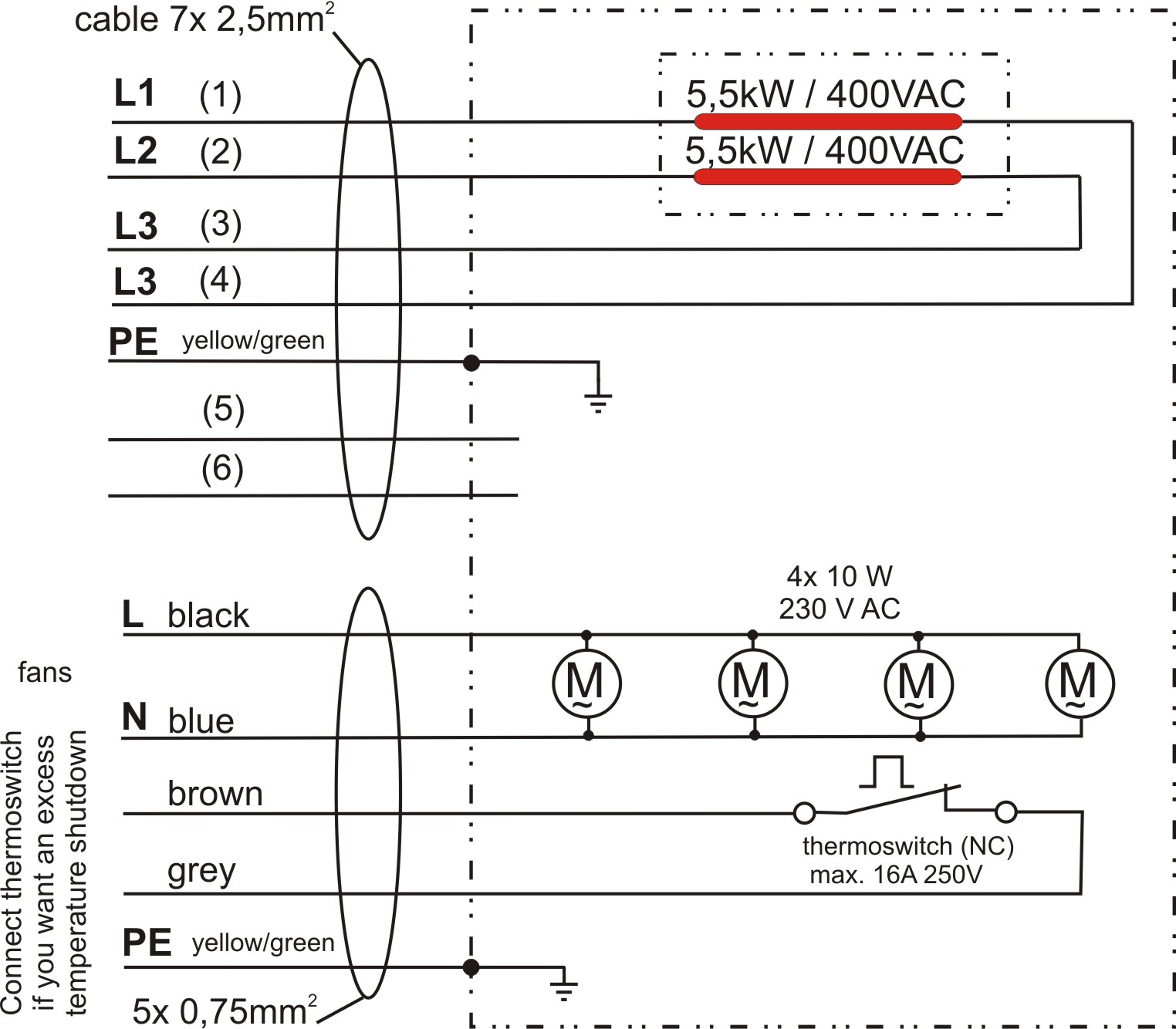

2 m silicone cable (7G2.5 mm² – infrared emitter)
2 m silicone cable (5G0.75 mm² – fan and thermoswitch)
additional meters on request
overtemperature switch to monitor the housing temperatur

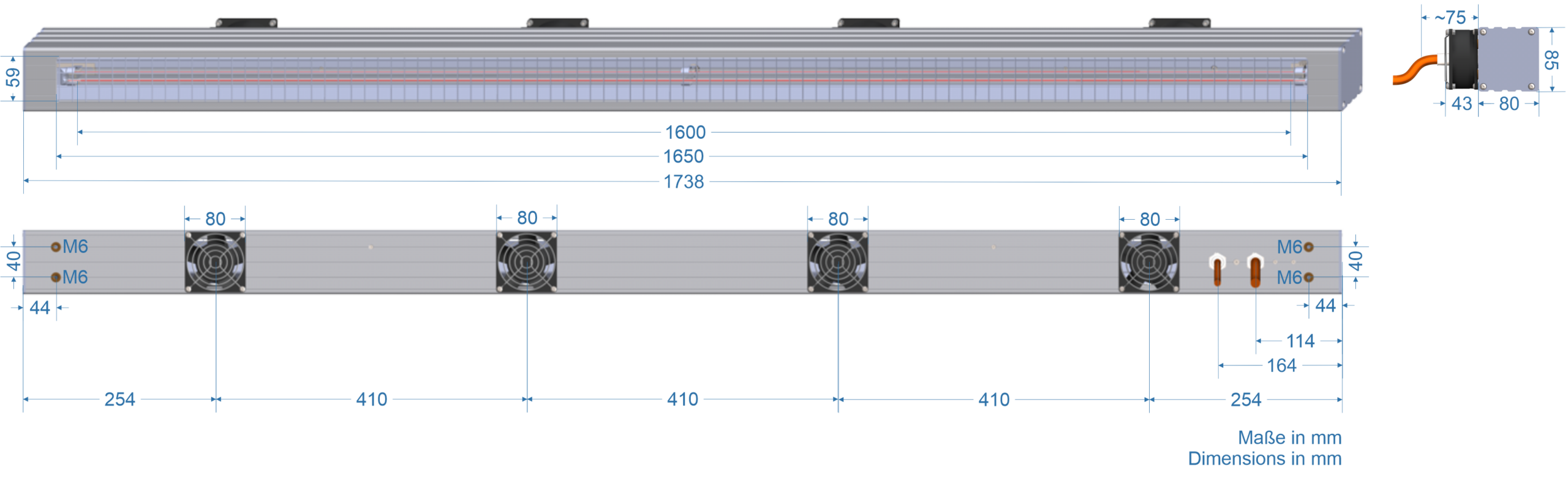

Dimensions (WxHxD): 1730 x 85 x 80 mm

Article number: 600.1043.1 (11.0 kW – 1600 mm heated length)
spare emitter: 800.3311
